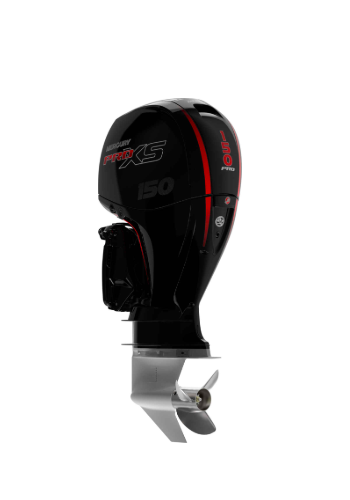

Mercury 150 HP PRO XS
BackMercury 150 HP PRO XS
Mercury 150 HP PRO XS, 4-Stroke, Short Shaft/Long Shaft.
Price POA
For competitive angling and flat-out performance, Pro XS is the leading engine on the water – capable of out-accelerating and outpacing the competition and providing confidence to go farther
Largest displacement in 150hp class at 3.0 L, yet also lightest weight by nearly 21 lbs (10 Kg) The 150 hp Pro XS is also 40 lbs (18 Kg) lighter than competing two-stroke outboards
Proven, performance-inspired gearcase provides durability and speed
Mercury-exclusive Transient Spark technology optimizes spark timing delivering increased torque & strong acceleration.
Optimized engine mounts improve handling at high speeds
|
Attributes
HP/kW @ Prop
|
Value
150 / 110
|
|
Max RPM (WOT)
|
5200 – 6000
|
|
Induction System
|
Performance – Tuned Scroll Intake Manifold
|
|
Ignition
|
SmartCraft ECM Digital Inductive
|
|
Fuel System
|
Multi-Port Electronic Fuel Injection (EFI)
|
|
Alternator Amp/Watt
|
60 amp / 756 watt belt-driven w Idle Charge
|
|
Starting
|
SmartStart Electric (turn-key)
|
|
Gear Shift
|
Mechanical F-N-R
|
|
Steering
|
Mechanical Cable Conventional Hydraulic [Opt) Mercury Power Steering Dual (Opt) Bit Tiller P/S Handle Kit [Opt)
|
|
Recommended Oil
|
NMMA Certified FCW SAE 25W-40
|
|
Cooling System
|
Water-Cooled w/ thermostat
|
|
Cylinders
|
4 (in-line) 8 Valve SOHC
|
|
Displacement (CID/cc)
|
183 / 3000
|
|
Bore X Stroke (in/mm)
|
4.0 x 3.6 / 102 x 92
|
|
Gear Ratio
|
2.08:1
|
|
Propeller
|
Consult Dealer Propeller Guide
|
|
Trim System
|
SmartCraft Programmable
|
|
Exhaust System
|
Through Prop
|
|
Fuel/Ethanol Tolerance
|
87 octane/up to 10% Ethanol
|
|
Operator Warning System
|
SmartCraft Engine Guardian
|
|
SmartCraft Technology
|
Yes
|
|
Shaft Length (in/mm)
|
20/508 25/636
|
|
Dry Weight (lbs/kg)*
|
456/207 *Lightest model available
|
