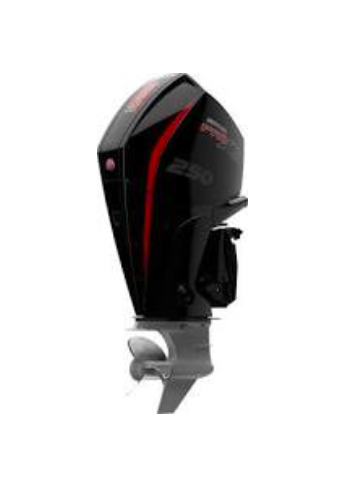

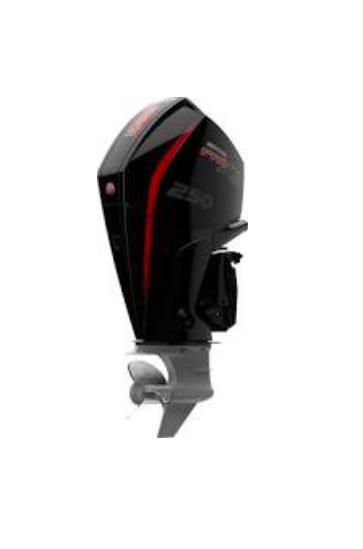

Mercury 250 HP V8 PRO XS, 4-Stroke, Short Shaft/Long Shaft.
Price POA
No outboard performs like Mercury Pro XS®, The new V8 4.6L has the muscle to out-accelerate and out-run the competition
- Superior acceleration from performance-inspired quad-cam design and Transient Spark Technology
- Optimized TorqueMaster gearcase (20″ Shaft models) for impressive performance
- Exhilarating top speed with Pro XS performance calibration
- Lightweight for maximum performance
- Maximum fuel efficiency from Advanced Range Optimization and closed-loop fuel control.
- Enhanced driving experience with Adaptive Speed Control
|
Attributes
HP/kW @ Prop
|
Value
250/186
|
|
Max RPM (WOT)
|
5600-6200
|
|
Cylinders / Configuration
|
V8 [64 degree] with 32-valve Dual Overhead Cam [DOHC]
|
|
Displacement (CID/Liters)
|
4.6L/279
|
|
Bore x Stroke (mm/in)
|
3.6 x 3.4 / 92 x 86
|
|
Induction System
|
Performance-Tuned Long-Runner Intake Manifold
|
|
Ignition
|
SmartCraft PCM 112 Digital Inductive
|
|
Fuel System
|
Electronic Fuel Injection [EFI] with ARO
|
|
Alternator Amp/Watt
|
85 amp / 1071 watt belt-driven [Idle Charge]
|
|
Midsection Design
|
Centralized Motor Mounts
|
|
Starting
|
SmartCraft Electric [turn-key] with SmartStart Protection
|
|
Gearcase / Ratio
|
TorqueMaster 1.75:1 (20″ Shaft) 544″ 1.75:1 RH (25″ Shaft)
|
|
Gear Shift
|
Electronically-Actuated Shifting
|
|
Controls
|
Mechanical Control with Digital Throttle and Shift [DTS]
|
|
Steering
|
Hydraulic [Optional] Power Steering Kit [Optional] Bit Tiller Handle Kit [Optional]
|
|
Mounting Centers
|
Minimum 26-inch (660 mm) Centers
|
|
Engine Protection System
|
SmartCraft Engine Guardian
|
|
Recommended Oil
|
NMMA Certified FCW SAE 10W-30
|
|
Oil Capacity
|
7.0 qts / 6.6 L
|
|
Fuel Requirements
|
Unleaded Regular 87 Octane Minimum [R+M/2] Or 91 RON 10% Ethanol Maximum
|
|
Dry Weight (lbs/kg)
|
L= 505/229 XL=515/234
|
|
Trim Range
|
20 degree (-6 to 14 degrees)
|
|
Tilt Range
|
73 degree (-6 to 67 degrees)
|
|
Shaft Length inches (mm)
|
20 (508) 25 (635)
|
|
Operator Warning System
|
SmartCraft Engine Guardian
|
