Mercury 5 HP
BackMercury 5 HP

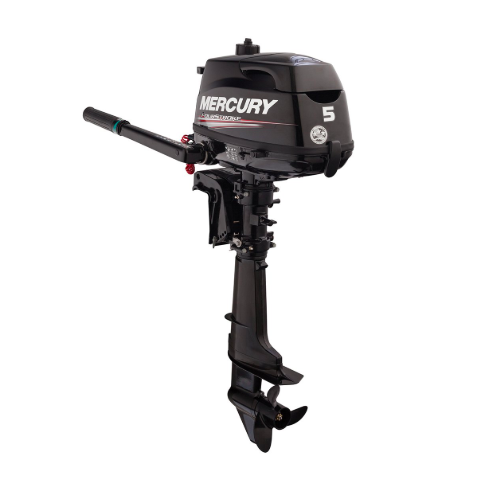

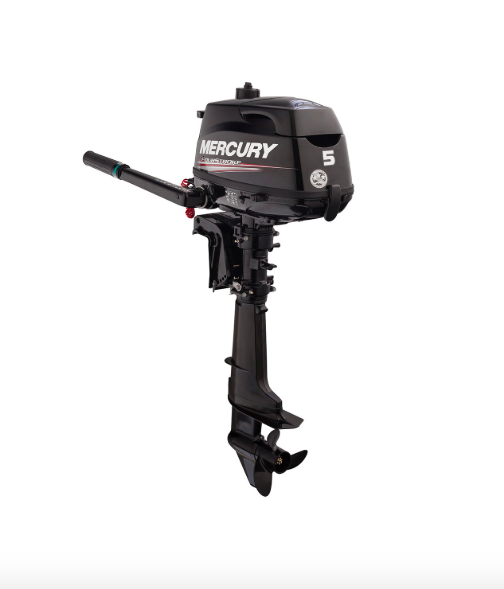

Mercury 5 HP, 4-Stroke, Short Shaft/Long Shaft.
Price POA
Taking the fun with you is one of the great advantages of owning an inflatable boat or small fishing boat. The portable Mercury 4, 5, & 6 hp FourStroke outboards make operation and portability easy with smart, simple features. Plus, clean, quiet, fuel-efficient FourStroke performance makes them the obvious power of choice. Manufactured to the same high standards of corrosion resistance as larger Mercury models.
- At 57 pounds (26 kg.) the compact 6 hp is one of the lightest in its class
- An automatic decompression relief greatly reduces pull force for effortless starting.
|
Attributes
HP/kW @ Prop
|
Value
5 / 3.7
|
|
Max RPM (WOT)
|
4500 – 5500
|
|
Induction System
|
2-valve Push Rod (OHV)
|
|
Fuel System
|
Carbureted
|
|
Alternator Amp/Watt
|
4/50 amp on select models
|
|
Starting
|
Manual
|
|
Gear Shift
|
F-N-R
|
|
Steering
|
Tiller
|
|
Recommended Oil
|
Mercury 4-Stroke Outboard Oil
|
|
Cooling System
|
Water-Cooled w/ thermostat
|
|
Cylinders
|
1
|
|
Displacement (CID/cc)
|
7.5 / 123
|
|
Bore X Stroke (in/mm)
|
2.32 x 1.77 / 59 x 45
|
|
Ignition System
|
CDI w/ electronic spark advance
|
|
Gear Ratio
|
2.15:1
|
|
Propeller
|
8.375” x 8”
|
|
Trim Positions
|
6
|
|
Shallow Water Drive
|
Standard
|
|
Exhaust System
|
Through Prop
|
|
Fuel/Ethanol Tolerance
|
87 octane/up to 10% Ethanol
|
|
Integral Fuel Tank (gal/L)
|
0.30 / 1.0 (Optional 3.3 /12 Remote)
|
|
Operator Warning System
|
Low Oil Pressure, Over-rev
|
|
SmartCraft Technology
|
No
|
|
Shaft Length (in/mm)
|
15/381 20/508 25/635
|
|
Dry Weight (lbs/kg)*
|
57/26 *Lightest model available
|
